Design of a 12-bit CPU with Basic Instructions


Design of a 12-bit CPU with Basic Instructions

A Central Processing Unit (CPU) is the core component of a computer responsible for executing instructions. It performs arithmetic, logical, and control operations. Modern CPUs are integrated as microprocessors and may include multiple cores and peripheral components.

The CPU mainly consists of:

  • Arithmetic Logic Unit (ALU): Performs arithmetic and logical operations
  • Control Unit (CU): Fetches, decodes, and executes instructions

Registers

Registers are fast storage elements used inside the CPU:

  • Instruction Register – stores current instruction
  • Data Register – stores intermediate data

Memory Types

  • Registers – fastest access
  • Main Memory – temporary storage
  • Secondary Storage – long-term storage

Main memory includes:

  • RAM (Random Access Memory)
  • ROM (Read Only Memory)

Instruction Sets

  • CISC – Large instruction set
  • RISC – Simplified instruction set for faster execution

Processing Types

  • Serial Processing – one instruction at a time
  • Parallel Processing – multiple instructions simultaneously

CPU Components & Interfaces

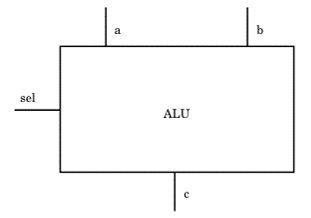

ALU interface
Fig.1: ALU Interface
ALU function table
Fig.2: ALU Function Table

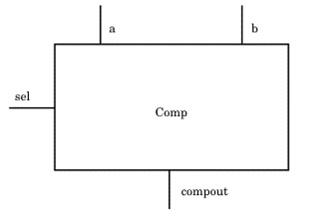

Comparator interface
Fig.3: Comparator Interface

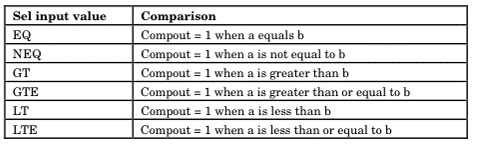

Comparator operation table
Fig.4: Comparator Operation Table

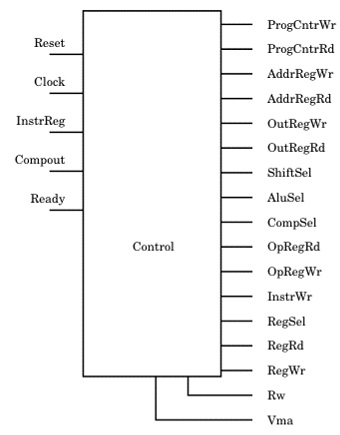

Control symbol
Fig.5: Control Symbol

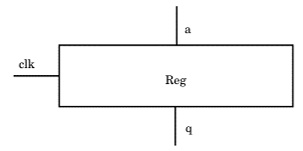

Register symbol
Fig.6: Register Symbol

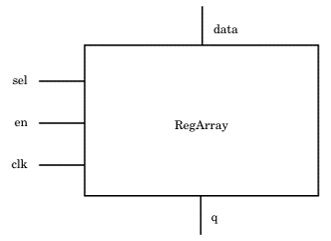

Register array
Fig.7: Register Array Symbol
Shift symbol
Fig.8: Shift Symbol

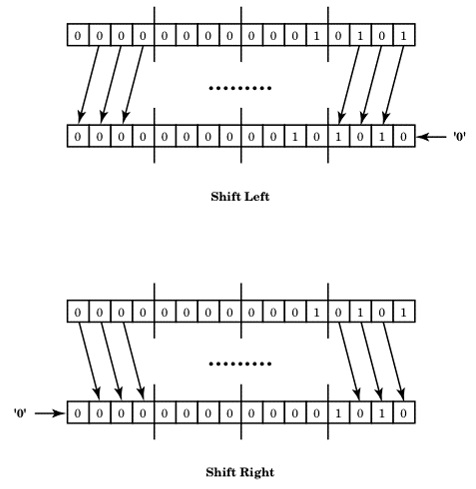

Shift operations
Fig.9: Shift Operations

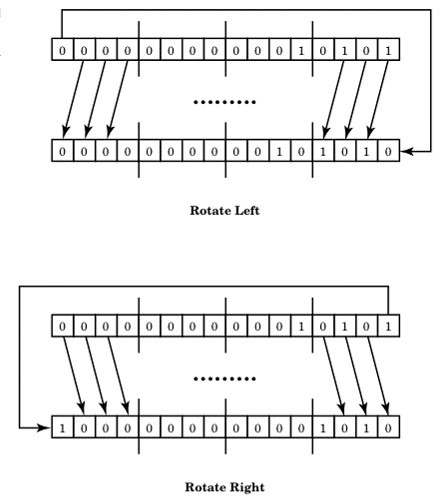

Rotate operations
Fig.10: Rotate Operations
Tri-state register
Fig.11: Tri-register Symbol

CPU Block Diagram

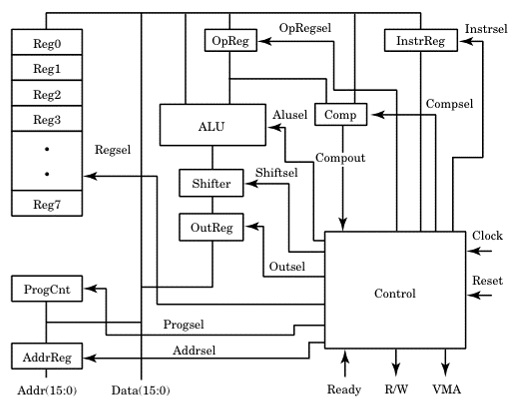

CPU block diagram
Fig.12: Block Diagram of CPU

Observations & Data

Write and simulate the VHDL program to generate the RTL schematic and test bench waveform.

Procedure

Follow Xilinx ISE procedure for coding, simulation, and synthesis.

Conclusion

The 12-bit CPU was successfully implemented using VHDL. Simulation results confirmed correct execution of instructions and proper CPU functionality.
